We waren gebleven bij het maken van een botsingsmodel, waarbij we nu twee deeltjes hebben die onderhevig zijn aan zwaartekracht.

Laten we de zwaartekracht even vergeten en alleen 1D kijken.

# Importeren van libraries
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

# Define a class for a particle
class ParticleClass:
    def __init__(self, m, v, r, R):
        self.m = m                  # mass of the particle
        self.v = np.array(v, dtype=float)  # velocity vector
        self.r = np.array(r, dtype=float)  # position vector
        self.R = np.array(R, dtype=float)  # radius of the particle

    def update_position(self, dt):
        self.r += self.v * dt

    def collide_detection(self, other):
        return .....

# Simulation parameters
dt = 0.1         # time step
num_steps = 200  # number of time steps

particleA = ParticleClass(m=1.0, v=[2.5, 0], r=[-2.0, 0.0],R=0.45)
particleB = ParticleClass(m=1.0, v=[-1, 0], r=[0.0, 0.0],R=0.45)

track_x = []
track_y = []


# Create the figure and axis

fig, ax = plt.subplots()

ax.set_xlim(-10, 10)
ax.set_ylim(-10, 10)
ax.set_aspect('equal')
ax.set_title("Particle Animation")
ax.set_xlabel("x")
ax.set_ylabel("y")
track_line, = ax.plot([], [], 'r--', linewidth=1)

# Toon het deeltje als een rode stip
dot, = ax.plot([], [], 'ro', markersize=10); # semicolon to suppress output
dotA, = ax.plot([], [], 'ro', markersize=10)
dotB, = ax.plot([], [], 'bo', markersize=10)


# Initialization function for animation
def init():
    dot.set_data([], [])
    return dot,

# Update function for each frame
def update(frame):
    particleA.update_position(dt)
    particleB.update_position(dt)

    track_x.append(particleA.r[0])
    track_y.append(particle_array[0].r[1])
    track_line.set_data(track_x, track_y)

    dotA.set_data([particle_array[0].r[0]], [particleA.r[1]])
    dotB.set_data([particleB.r[0]], [particleB.r[1]])

    #collision detection and response
    if particleA.collide_detection(particleB):
        ......
        ......

    # wall collision detection and response
    if particleA.r[0]**2>100:
        particleA.v[0] = -particleA.v[0]
    if particleA.r[1]**2>100:
        particleA.v[1] = -particleA.v[1]

    dot.set_data([particleB.r[0]], [particleB.r[1]])
    if particleB.r[0]**2>100:
        particleB.v[0] = -particleB.v[0]
    if particleB.r[1]**2>100:
        particleB.v[1] = -particleB.v[1]

    return dot, track_line

# Create animation
ani = FuncAnimation(fig, update, frames=range(num_steps), init_func=init, blit=True, interval=50)

# For Jupyter notebook:
from IPython.display import HTML
HTML(ani.to_jshtml())

### BEGIN SOLUTION
# Importeren van libraries
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

# Define a class for a particle
class ParticleClass:
    def __init__(self, m, v, r, R):
        self.m = m                  # mass of the particle
        self.v = np.array(v, dtype=float)  # velocity vector
        self.r = np.array(r, dtype=float)  # position vector
        self.R = np.array(R, dtype=float)  # radius of the particle

    def update_position(self, dt):
        self.r += self.v * dt

    def collide_detection(self, other):
        return np.linalg.norm(self.r - other.r) < (self.R + other.R)

# Simulation parameters
dt = 0.1         # time step
num_steps = 200  # number of time steps
boxsize = 10

particle_array = []

for i in range(2):
    particle_array.append(ParticleClass(m=1.0, v=[np.random.uniform(-5,5), 0], r=[0.0, 0.0],R=1.0))
    particle_array[i].update_position(1.0)

particle_array[0] = ParticleClass(m=1.0, v=[2.5, 0], r=[-2.0, 0.0],R=0.45)
particle_array[1] = ParticleClass(m=1.0, v=[-1, 0], r=[0.0, 0.0],R=0.45)


track_x = []
track_y = []


# Create the figure and axis
fig, ax = plt.subplots()

ax.set_xlim(-boxsize, boxsize)
ax.set_ylim(-boxsize, boxsize)
ax.set_aspect('equal')
ax.set_title("Particle Animation")
ax.set_xlabel("x")
ax.set_ylabel("y")
track_line, = ax.plot([], [], 'r--', linewidth=1)


# Create the particles as dots
dotA, = ax.plot([], [], 'ro', markersize=10)
dotB, = ax.plot([], [], 'bo', markersize=10)



# Initialization function for animation
def init():
    dot.set_data([], [])
    return dot,

# Update function for each frame
def update(frame):
    for particles in particle_array:
        particles.update_position(dt)

    track_x.append(particle_array[0].r[0])
    track_y.append(particle_array[0].r[1])
    track_line.set_data(track_x, track_y)

    dotA.set_data([particle_array[0].r[0]], [particle_array[0].r[1]])
    dotB.set_data([particle_array[1].r[0]], [particle_array[1].r[1]])

    #collision detection and response
    if particle_array[0].collide_detection(particle_array[1]):
        particle_array[0].v[0] = -particle_array[0].v[0]
        particleB.v[0] = -particleB.v[0]

    # wall collision detection and response
    for particles in particle_array:
        if particles.r[0]**2>boxsize**2: # Check if particle is outside the bounds, np.abs could be used but is slower
            particles.v[0] = -particles.v[0]
        if particles.r[1]**2>boxsize**2: # Check if particle is outside the bounds, np.abs could be used but is slower
            particles.v[1] = -particles.v[1]

    dot.set_data([particleB.r[0]], [particleB.r[1]])

    return dot, track_line

# Create animation
ani = FuncAnimation(fig, update, frames=range(num_steps), init_func=init, blit=True, interval=50)

# For Jupyter notebook:
from IPython.display import HTML
HTML(ani.to_jshtml())
### END_SOLUTION

now with collission formula know.. in updating, vb relies on va, so use hulpvariabele

### BEGIN_SOLUTION
# Define a class for a particle
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

class ParticleClass:
    def __init__(self, m, v, r, R):
        self.m = m                  # mass of the particle
        self.v = np.array(v, dtype=float)  # velocity vector
        self.r = np.array(r, dtype=float)  # position vector
        self.R = np.array(R, dtype=float)  # radius of the particle

    def update_position(self, dt):
        self.r += self.v * dt

    def collide_detection(self, other):
        return np.linalg.norm(self.r - other.r) <= (self.R + other.R)

# Simulation parameters
dt = 0.1         # time step
num_steps = 530  # number of time steps

particleA = ParticleClass(m=1.0, v=[0, 0], r=[-2.0, 0.0],R=0.45)
particleB = ParticleClass(m=100.0, v=[-1, 0], r=[2.0, 0.0],R=0.45)

track_x = []
track_y = []
# Create the figure and axis

fig, ax = plt.subplots()

ax.set_xlim(-10, 10)
ax.set_ylim(-10, 10)
ax.set_aspect('equal')
ax.set_title("Particle Animation")
ax.set_xlabel("x")
ax.set_ylabel("y")
dot, = ax.plot([], [], 'ro', markersize=10); # semicolon to suppress output

counter = 0

# Create the particle as a red dot
dotA, = ax.plot([], [], 'ro', markersize=10)
dotB, = ax.plot([], [], 'bo', markersize=10)

counter_text = ax.text(-9.5, 9, "")

# Initialization function for animation
def init():
    dot.set_data([], [])
    return dot,

# Update function for each frame
def update(frame):
    global counter
    particleA.update_position(dt)
    particleB.update_position(dt)

    track_x.append(particleA.r[0])
    track_y.append(particleA.r[1])
    track_line.set_data(track_x, track_y)

    dotA.set_data([particleA.r[0]], [particleA.r[1]])
    dotB.set_data([particleB.r[0]], [particleB.r[1]])

    counter_text.set_text(f"Collisions: {counter}")

    #collision detection and response
    if particleA.collide_detection(particleB):
        counter += 1
        vA, vB, mA, mB, rA, rB = particleA.v, particleB.v, particleA.m, particleB.m, particleA.r, particleB.r
        vA_new = vA - 2 * mB / (mA + mB) * np.dot(vA - vB, rA - rB) / (1e-12+np.linalg.norm(rA - rB))**2 * (rA - rB)
        vB_new = vB - 2 * mA / (mA + mB) * np.dot(vB - vA, rB - rA) / (1e-12+np.linalg.norm(rB - rA))**2 * (rB - rA)
        particleA.v = vA_new
        particleB.v = vB_new


    # wall collision detection and response
    if particleA.r[0]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        counter += 1
        particleA.v[0] = -particleA.v[0]
    if particleA.r[1]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleA.v[1] = -particleA.v[1]

    dot.set_data([particleB.r[0]], [particleB.r[1]])
    if particleB.r[0]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleB.v[0] = -particleB.v[0]
    if particleB.r[1]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleB.v[1] = -particleB.v[1]

    return dot, track_line, counter_text

# Create animation
ani = FuncAnimation(fig, update, frames=range(200), init_func=init, blit=True, interval=50)

# For Jupyter notebook:
from IPython.display import HTML
HTML(ani.to_jshtml())
### END_SOLUTION

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[4], line 99
     97 # For Jupyter notebook:
     98 from IPython.display import HTML
---> 99 HTML(ani.to_jshtml())
    100 ### END_SOLUTION

File c:\Users\fpols\Miniconda3\lib\site-packages\matplotlib\animation.py:1353, in Animation.to_jshtml(self, fps, embed_frames, default_mode)
   1349         path = Path(tmpdir, "temp.html")
   1350         writer = HTMLWriter(fps=fps,
   1351                             embed_frames=embed_frames,
   1352                             default_mode=default_mode)
-> 1353         self.save(str(path), writer=writer)
   1354         self._html_representation = path.read_text()
   1356 return self._html_representation

File c:\Users\fpols\Miniconda3\lib\site-packages\matplotlib\animation.py:1105, in Animation.save(self, filename, writer, fps, dpi, codec, bitrate, extra_args, metadata, extra_anim, savefig_kwargs, progress_callback)
   1102 for data in zip(*[a.new_saved_frame_seq() for a in all_anim]):
   1103     for anim, d in zip(all_anim, data):
   1104         # TODO: See if turning off blit is really necessary
-> 1105         anim._draw_next_frame(d, blit=False)
   1106         if progress_callback is not None:
   1107             progress_callback(frame_number, total_frames)

File c:\Users\fpols\Miniconda3\lib\site-packages\matplotlib\animation.py:1140, in Animation._draw_next_frame(self, framedata, blit)
   1136 def _draw_next_frame(self, framedata, blit):
   1137     # Breaks down the drawing of the next frame into steps of pre- and
   1138     # post- draw, as well as the drawing of the frame itself.
   1139     self._pre_draw(framedata, blit)
-> 1140     self._draw_frame(framedata)
   1141     self._post_draw(framedata, blit)

File c:\Users\fpols\Miniconda3\lib\site-packages\matplotlib\animation.py:1768, in FuncAnimation._draw_frame(self, framedata)
   1764     self._save_seq = self._save_seq[-self._save_count:]
   1766 # Call the func with framedata and args. If blitting is desired,
   1767 # func needs to return a sequence of any artists that were modified.
-> 1768 self._drawn_artists = self._func(framedata, *self._args)
   1770 if self._blit:
   1772     err = RuntimeError('The animation function must return a sequence '
   1773                        'of Artist objects.')

Cell In[4], line 62, in update(frame)
     60 track_x.append(particleA.r[0])
     61 track_y.append(particleA.r[1])
---> 62 track_line.set_data(track_x, track_y)
     64 dotA.set_data([particleA.r[0]], [particleA.r[1]])
     65 dotB.set_data([particleB.r[0]], [particleB.r[1]])

NameError: name 'track_line' is not defined

Nu met g en als superball

### BEGIN_SOLUTION
# Define a class for a particle

g = np.array([0.0, -5.0])

class ParticleClass:
    def __init__(self, m, v, r, R):
        self.m = m                  # mass of the particle
        self.v = np.array(v, dtype=float)  # velocity vector
        self.r = np.array(r, dtype=float)  # position vector
        self.R = np.array(R, dtype=float)  # radius of the particle

    def update_position(self, dt):
        """Update the particle's position based on its velocity and time step dt."""
        self.r += self.v * dt + 1/2 * a * dt**2

    def update_velocity(self, dt):
        self.v += g*dt

    def collide_detection(self, other):
        """Check for collision with another particle."""
        return np.linalg.norm(self.r - other.r) <= (self.R + other.R)

# Simulation parameters
dt = 0.1         # time step
num_steps = 530  # number of time steps

particleA = ParticleClass(m=1.0, v=[0, 0], r=[0.0, 3*.45],R=0.45)
particleB = ParticleClass(m=2.0, v=[0, 0], r=[0.0, 0.0],R=0.45)

# Create the figure and axis

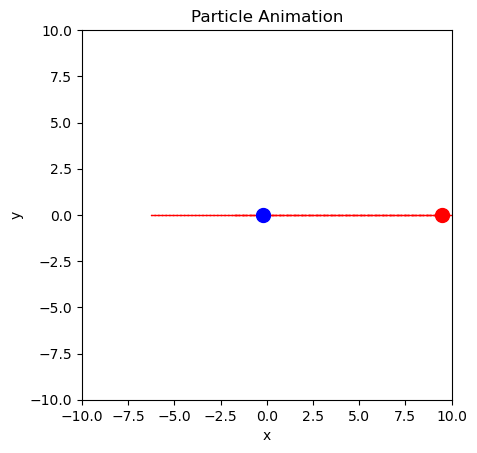

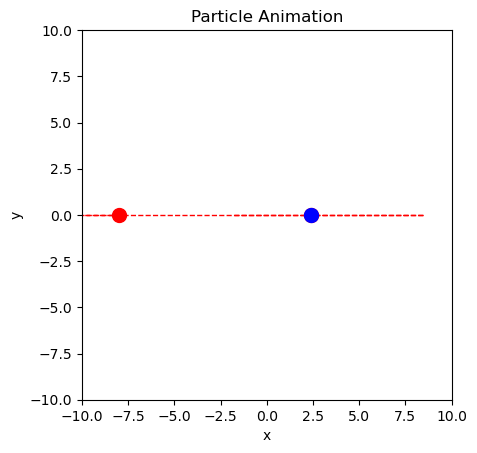

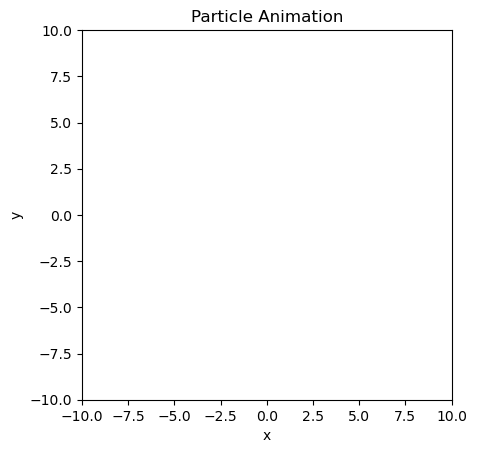

fig, ax = plt.subplots()

ax.set_xlim(-10, 10)
ax.set_ylim(-10, 10)
ax.set_aspect('equal')
ax.set_title("Particle Animation")
ax.set_xlabel("x")
ax.set_ylabel("y")

counter = 0

# Create the particle as a red dot
dotA, = ax.plot([], [], 'ro', markersize=10)
dotB, = ax.plot([], [], 'bo', markersize=10)

counter_text = ax.text(-9.5, 9, "")

# Initialization function for animation
def init():
    dot.set_data([], [])
    return dot,

# Update function for each frame
def update(frame):
    global counter
    particleA.update_position(dt)
    particleB.update_position(dt)

    particleA.update_velocity(dt)
    particleB.update_velocity(dt)

    track_x.append(particleA.r[0])
    track_y.append(particleA.r[1])
    track_line.set_data(track_x, track_y)

    dotA.set_data([particleA.r[0]], [particleA.r[1]])
    dotB.set_data([particleB.r[0]], [particleB.r[1]])

    counter_text.set_text(f"Collisions: {counter}")

    #collision detection and response
    if particleA.collide_detection(particleB):
        counter += 1
        vA, vB, mA, mB, rA, rB = particleA.v, particleB.v, particleA.m, particleB.m, particleA.r, particleB.r
        vA_new = vA - 2 * mB / (mA + mB) * np.dot(vA - vB, rA - rB) / (1e-12+np.linalg.norm(rA - rB))**2 * (rA - rB)
        vB_new = vB - 2 * mA / (mA + mB) * np.dot(vB - vA, rB - rA) / (1e-12+np.linalg.norm(rB - rA))**2 * (rB - rA)
        particleA.v = vA_new
        particleB.v = vB_new


    # wall collision detection and response
    if particleA.r[0]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        counter += 1
        particleA.v[0] = -particleA.v[0]
    if particleA.r[1]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleA.v[1] = -particleA.v[1]

    dot.set_data([particleB.r[0]], [particleB.r[1]])
    if particleB.r[0]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleB.v[0] = -particleB.v[0]
    if particleB.r[1]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleB.v[1] = -particleB.v[1]

    return dot, track_line, counter_text

# Create animation
ani = FuncAnimation(fig, update, frames=range(200), init_func=init, blit=True, interval=50)

# For Jupyter notebook:
from IPython.display import HTML
HTML(ani.to_jshtml())
### END_SOLUTION
