Aim¶
To show the effect of impedance matching.
Subjects¶
3B25 (Impendance and Dispersion)
Diagram¶
Diagram
Equipment¶
1 section of slow wave demonstrator

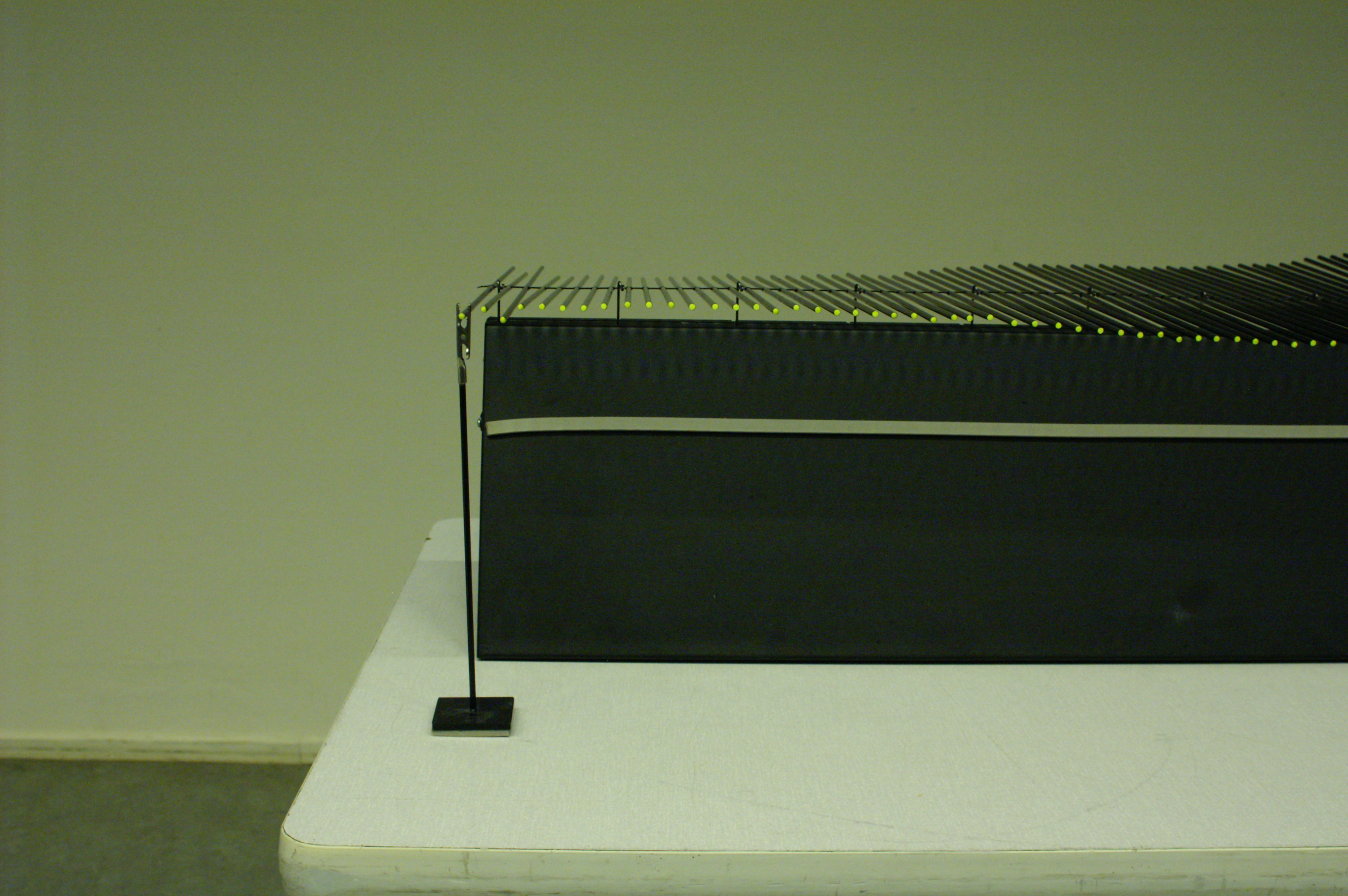

1 section of fast wave demonstrator

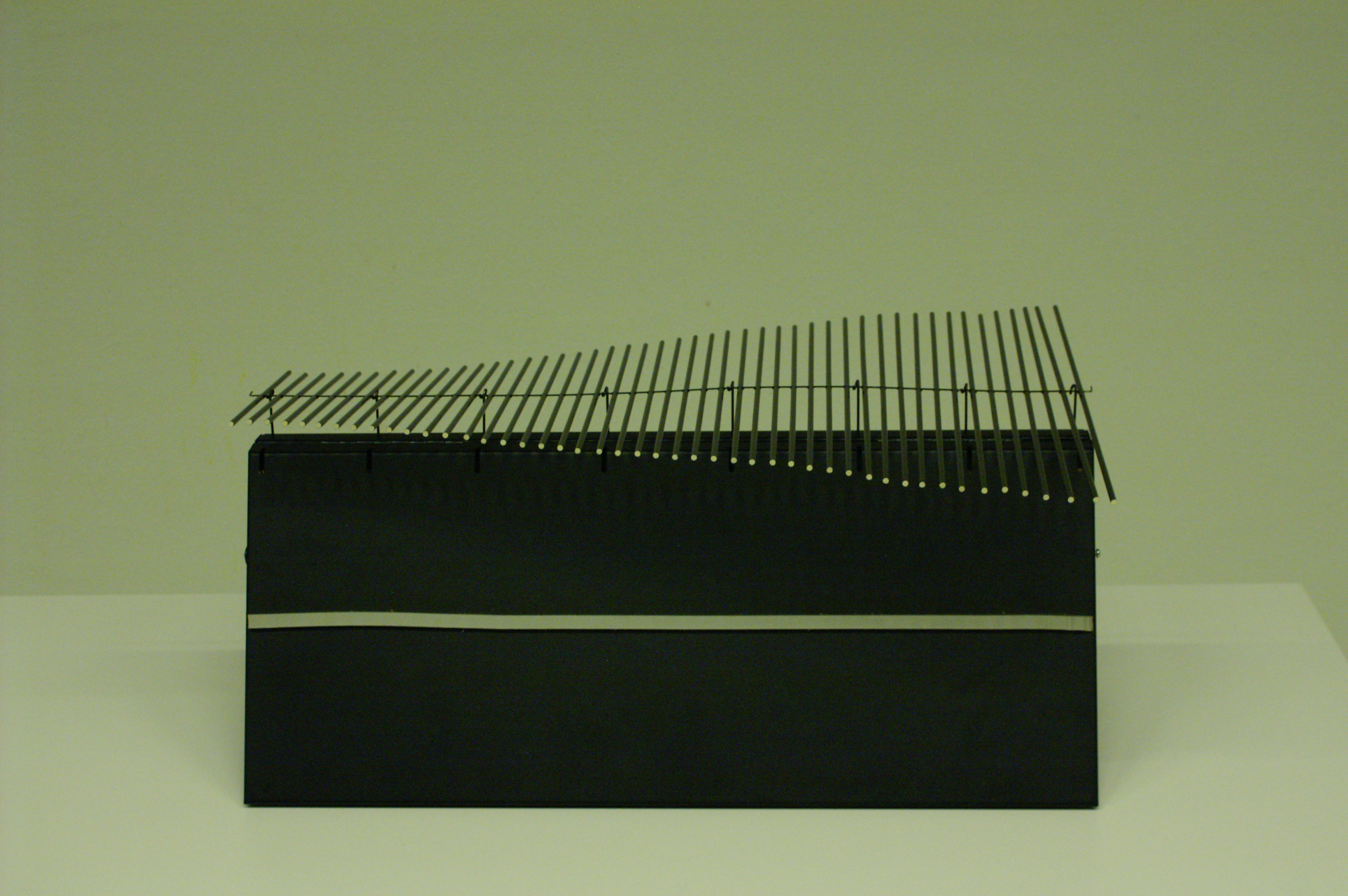

1 tapered section of wave demonstrator

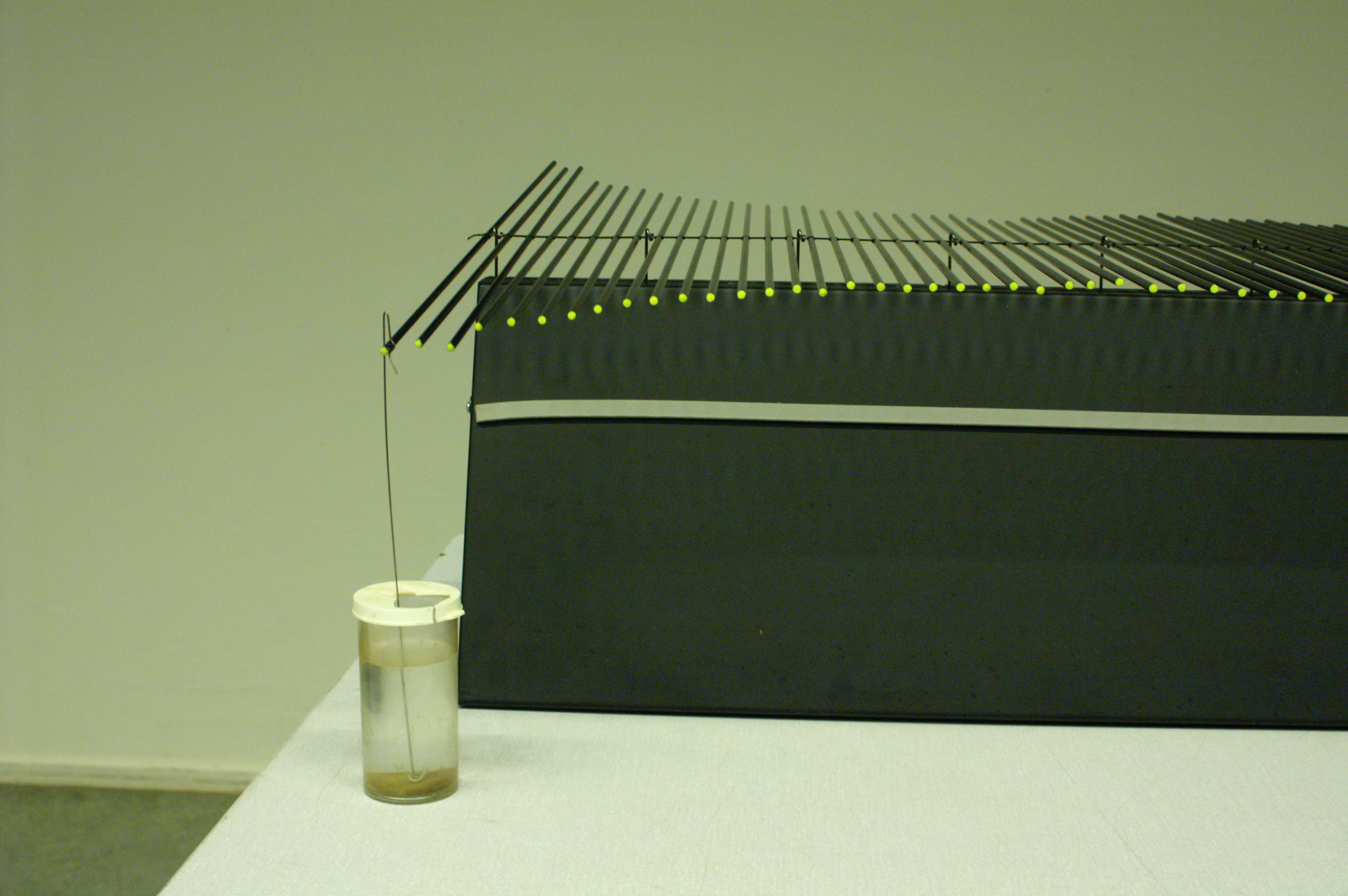

1 dashpot
Presentation¶

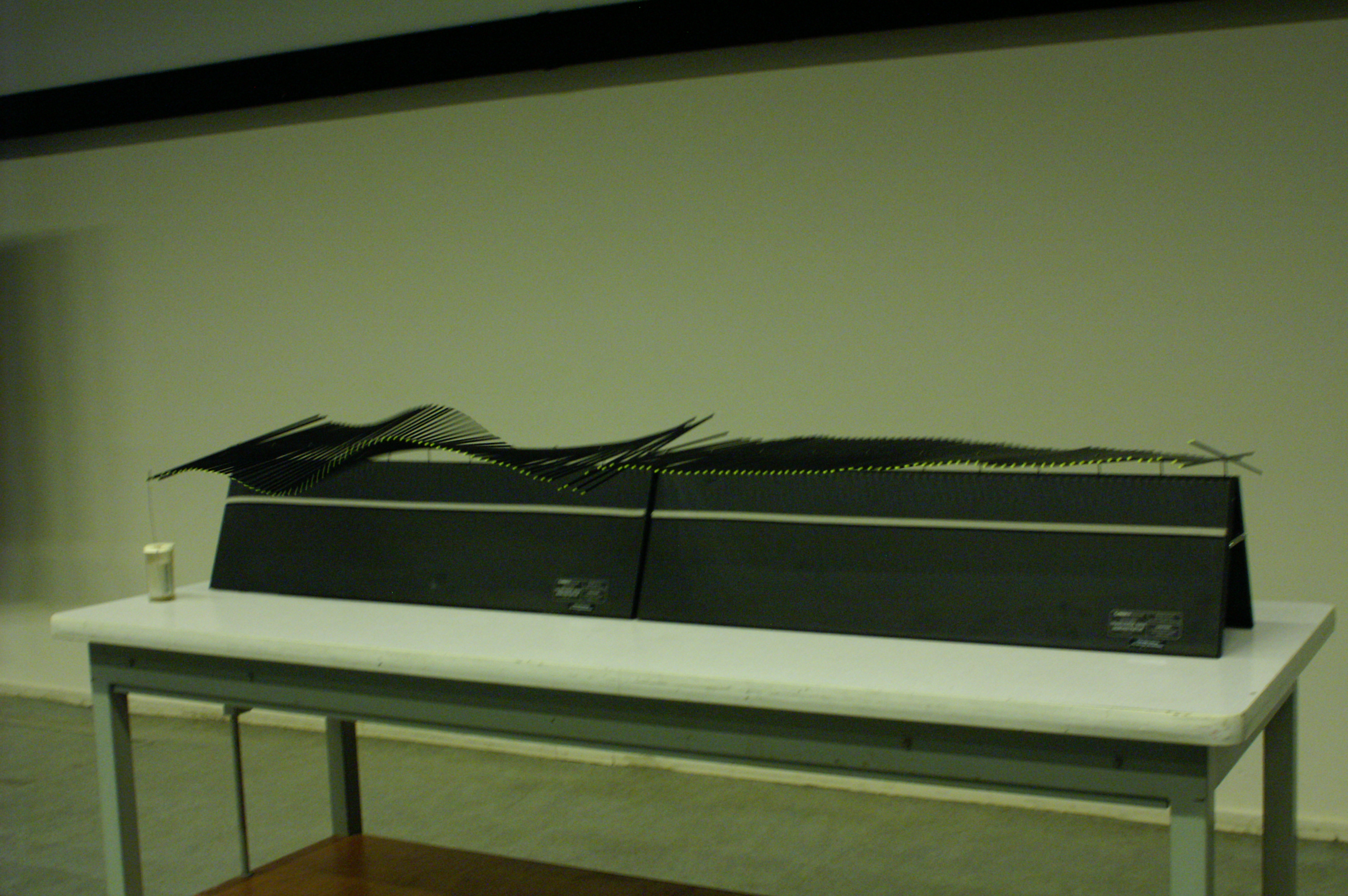

The slow wave demonstrator is coupled to the fast wave demonstrator. The dashpot is fixed to the end of the fast wave demonstrator. At the beginning of the slow wave demonstrator a sharp up and down disturbance is given by hand and a crest travels along the wave demonstrator. At the point of coupling, it can be observed that a significant portion of the crest is reflected and another part is transmitted to the fast wave demonstrator. If the tapered section is coupled between the slow and fast wave demonstrator, it can be shown that there is almost no reflection at the boundary.
Explanation¶
The tapered section serves as an impedance matching transformer.
Sources¶
PASCO scientific, Instruction Manual for the PASCO scientific Model SE-9600, 9601, 9602, and 9603
